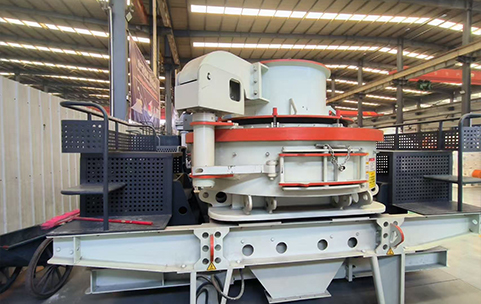

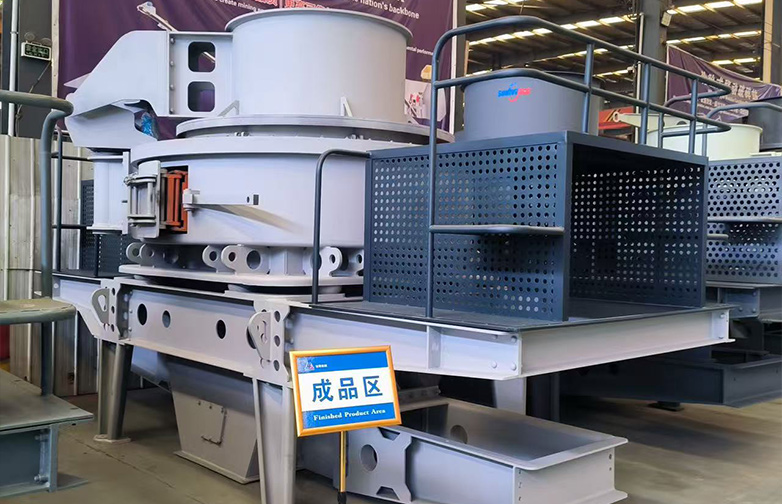

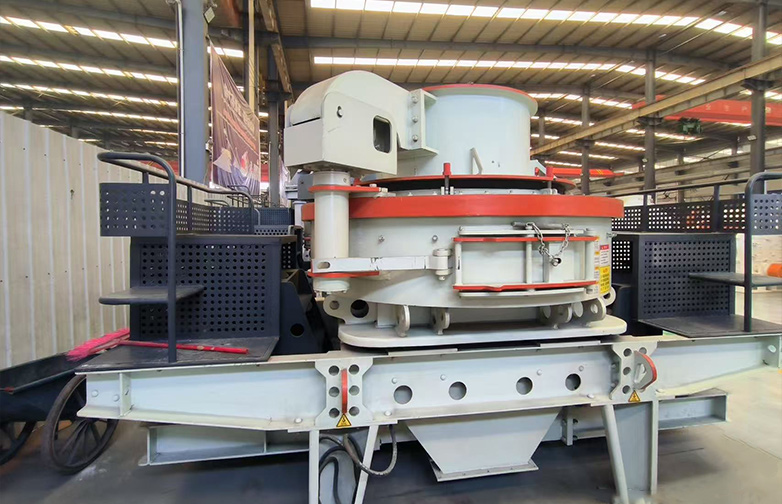

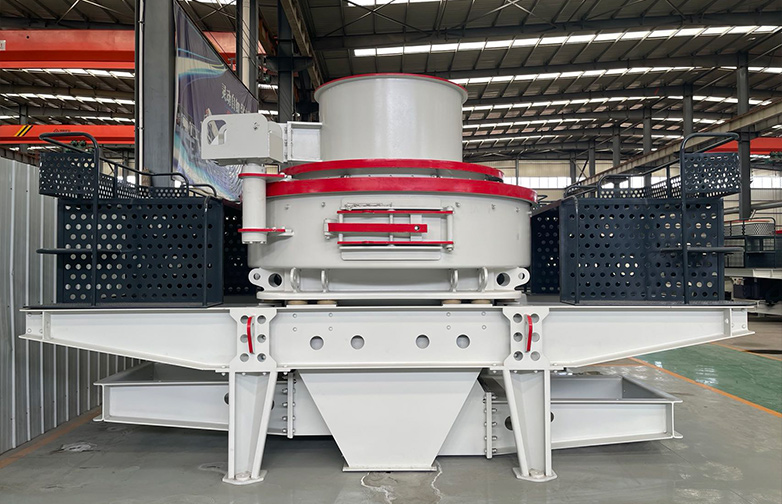

Vertical shaft impact crusher

The Vertical Shaft Impact (VSI) crusher specializes in sand making and shaping. Utilizing the high-speed "rock-on-rock" or "rock-on-iron" collision principle, it delivers energy-efficient performance with superior cubic product shapes. Ideal for medium-hard to hard materials like rocks, ores, and construction waste, it is extensively used in the aggregates, mining, and solid waste recycling sectors.

Feeding size: ≤50mm

Finished size: ≤5mm

Motor Power（KW）：150-630kw

Send Message

Product Introduction

Working Principle

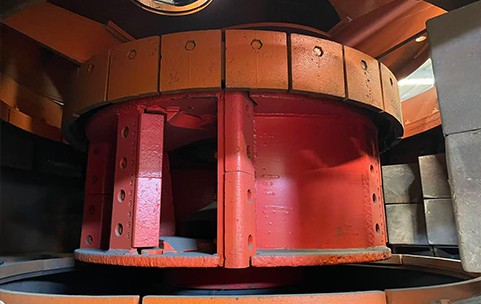

Material enters through the feed inlet and drops into the high-speed rotating impeller. Accelerated by centrifugal force, it is thrown out and collides at high velocity with either other material ("rock-on-rock") or metal impact plates ("rock-on-iron") to achieve primary crushing. Subsequently, a self-circulating flow forms within the vortex crushing chamber, where the material undergoes repeated impact and attrition to complete fine crushing and shaping. Finally, qualified finished products are discharged from the bottom. This process relies on material-to-material collision to efficiently achieve crushing and particle shape optimization.

Parameters

Model	Capacity(t/h)		Feed size(mm)		Rotation speed(r/min)	Motor Power(KW)
	Sacade falls and center feeding	Feed at center	Soft material	Hard material
VSI7615	130-180	60-140	35	30	1300-1700	150
VSI8522	200-260	120-200	40	35	1200-1500	200
VSI9532	300-380	180-280	45	40	1100-1400	320
VSI1145	400-460	250-360	50	45	1000-1300	440
VSI1150	550-640	340-360	55	45	1000-1300	500
VSI1263	650-850	400-480	60	50	900-1200	630

Advantages

1. Superior Particle Shape: Cubic grains, flaky content <8%, optimized gradation—boosts concrete strength by 10%.

2. Smart & Efficient: Auto-switch "rock-on-rock/iron" modes, 40% energy saving, doubled output.

3. Eco-Conscious: Fully enclosed dust control, recycles construction waste, meets emission standards.

4. Cost-Smart: 20% lower cost, easy maintenance, long lifespan.

5. Intelligent Operation: Hydraulic cover, remote diagnostics—saves 50% time/labor, safe & reliable.

Application Fields

VSI crushers are suitable for tertiary crushing, fine crushing, and shaping of materials ranging from soft to extremely hard. Applicable materials include various rocks (such as granite and limestone), river pebbles, ores, metallurgical slag, tailings, construction waste, cement clinker, refractory materials, bauxite, emery, silicon carbide, sintered bauxite, magnesia, glass raw materials, and quartz sand—catering to materials with high abrasiveness or high purity requirements.
