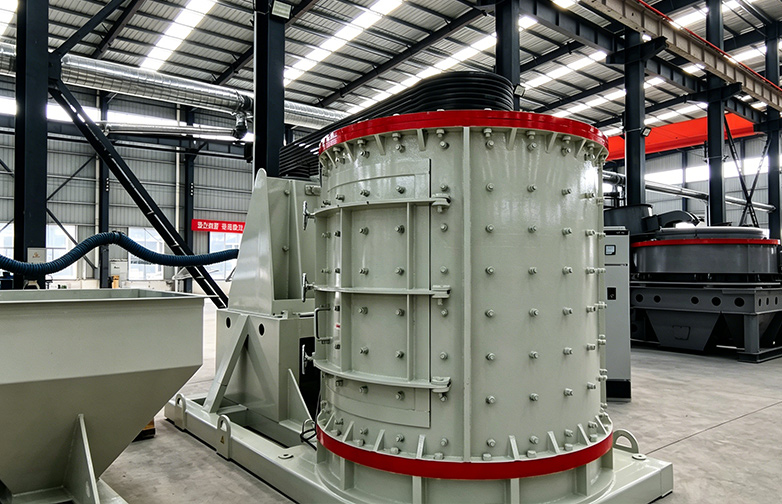

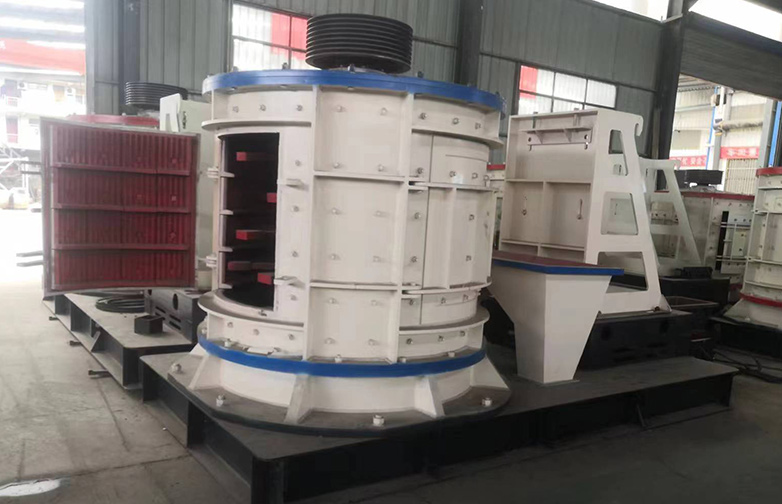

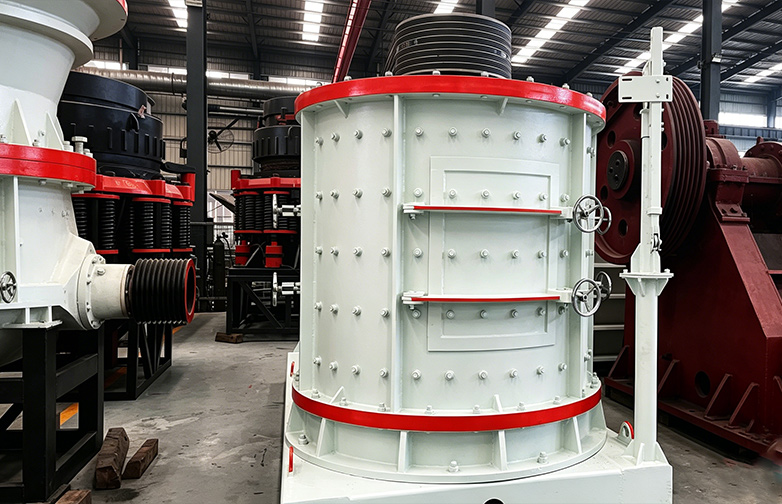

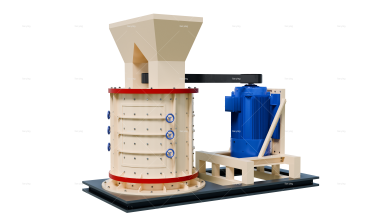

The PLF sand making machine is a fine crusher specially designed for medium and high hardness stones, such as river stones, quartz and gray stones. It is the first choice for sand making and fine crushing equipment.

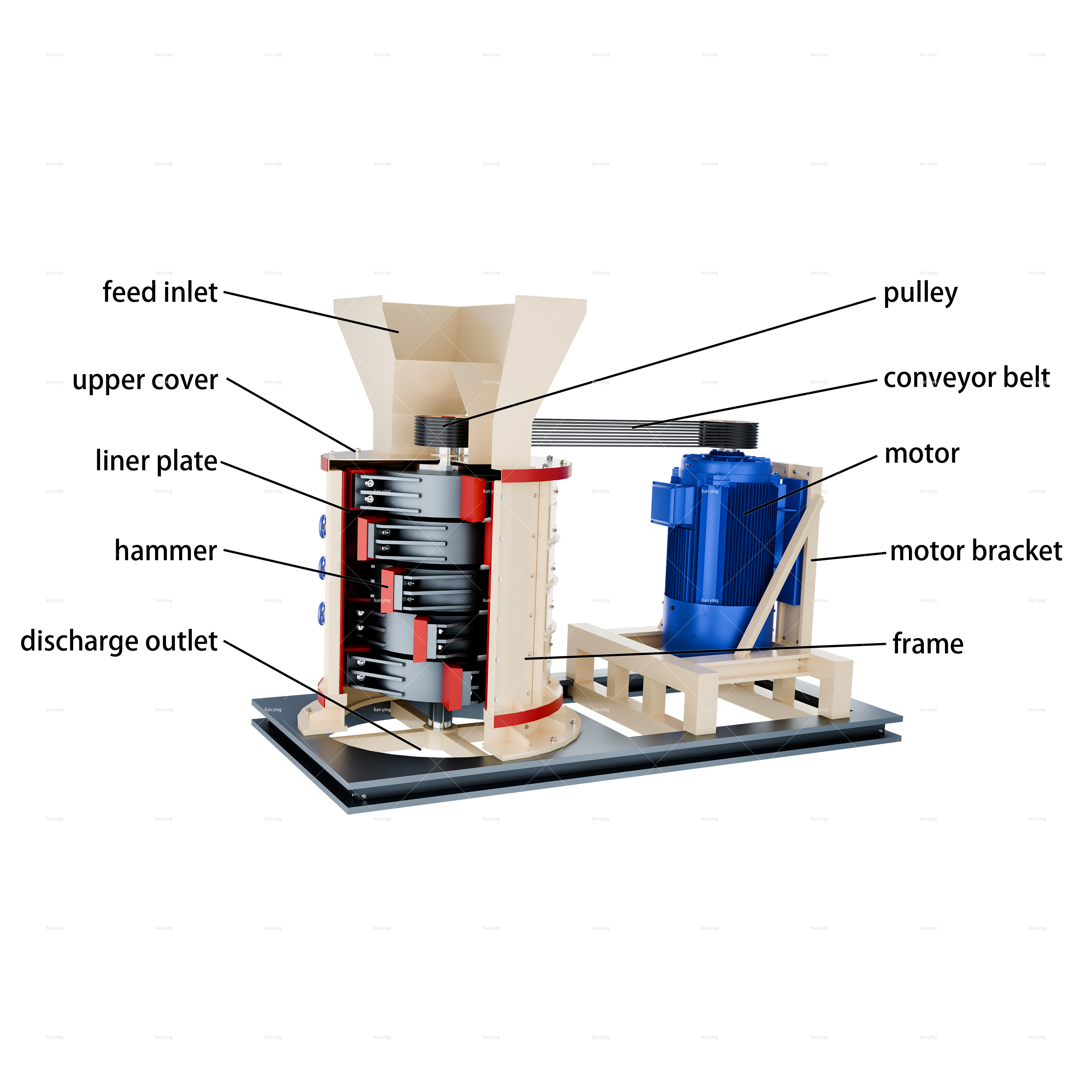

When the PLF sand making machine is in operation, materials enter the equipment from the feed hopper and are evenly distributed around the swirling crushing cavity through the distributor. Driven by the high-speed rotating impeller, the materials are accelerated and then hit the material lining in the vortex crushing cavity at high speed. At the same time, they collide with the materials emitted from the impeller channel. After multiple impacts and frictions, the finished sand with qualified particle size is discharged from the discharge port at the bottom of the equipment.
|
Model |
Input Size(mm) |
Output Size(mm) |
Capacity(t/h |
Spindle Speeds(r/min) |
Power(kw) |
Overall Dimensions (mm) |
|
PFL-800 |
<100 |
<3-560-90% |
10-20 |
934 |
37 |
2100×1200×1700 |
|
PFL-1000 |
<120 |
<3-560-90% |
20-40 |
769 |
55 |
2600×1400×1900 |
|
PFL-1250 |
<150 |
<3-560-90% |
40-70 |
530 |
90 |
2800×1600×2100 |
|
PFL-1500 |
<190 |
<3-560-90% |
70-100 |
495 |
160 |
3100×1900×2200 |
|
PFL-1750 |
<200 |
<3-560-90% |
130-190 |
424 |
200 |
3710×2360×2390 |
|
PFL-2000 |
<220 |
<3-560-90% |
160-230 |
370 |
250 |
4100×2660×2620 |
Large Crushing Ratio: It can crush materials with larger particle sizes into finished products with smaller particle sizes, reducing subsequent processing steps effectively.
Low Energy Consumption: Compared with other similar crushers, it consumes less energy under the same production capacity, helping to save energy costs significantly.
Smooth Operation: The equipment operates with low vibration and low noise, which reduces the impact on the working environment and extends the service life of the equipment.
Simple Structure: The main components are reasonably arranged, easy to understand and operate, which lowers the difficulty and cost of maintenance.
Easy to Operate and Maintain: Routine inspection and maintenance work are relatively simple, and wearing parts are convenient to replace, shortening equipment downtime.
Uniform Product Particle Size: The crushed materials have relatively consistent particle sizes, high bulk density, a cubic shape, and minimal iron contamination, making them suitable for the production of high-quality building materials.
Less Affected by Moisture: The moisture content of materials can reach about 8%. It has a better crushing effect on wet materials and is not prone to problems such as clogging.
It is widely used for crushing hard and brittle materials, including rocks, grinding materials, refractory materials, cement clinkers, quartzite, iron ores and concrete aggregates.
>
