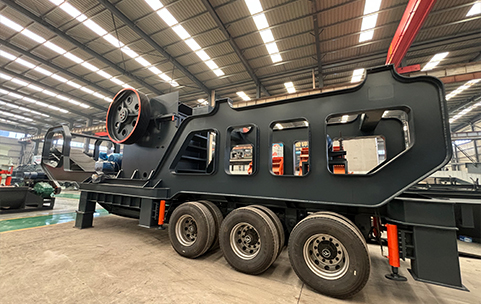

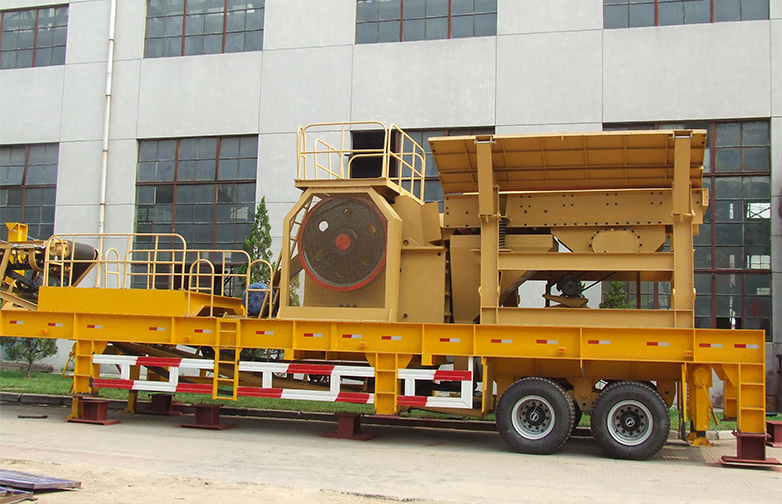

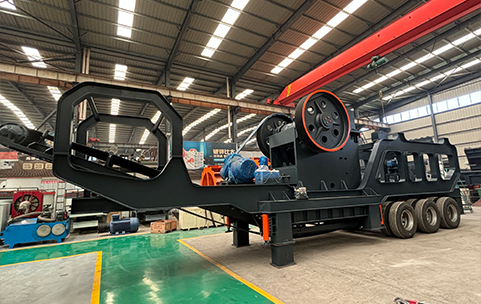

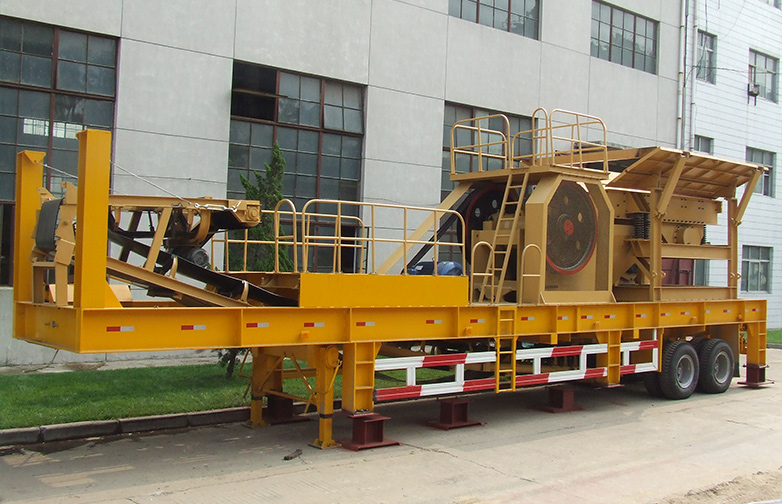

Mobile Jaw Crusher Plant

This mobile crushing plant can be flexibly equipped with PE standard jaw crushers, PEX European-style jaw crushers or 6CX European-type jaw crushers. All models deliver high crushing efficiency, strong versatility and superior finished product quality, supported by a lightweight and optimized structural design.

Feeding size: ≤1200mm

Optional:power

Capacity: 50-300t/h

Send Message

Product Introduction

Application Materials

River pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), and ore tailings.

Working Principle

The mobile jaw crusher operates by feeding materials evenly into the crushing host via a vibrating feeder. After primary crushing in the jaw crusher, materials are conveyed to a circular vibrating screen to form a closed-loop system, which realizes material circulation and repeated crushing. Qualified finished products are discharged by the conveyor for continuous production.

Parameters

Mobile Jaw Crusher Plant Technical Parameters
Standard Model	Corollary Equipment	Adjustable Range of Discharge Opening (mm)	Capacity (t/h)	Overall Dimension (mm)
SC69L	ZSW3896+PE69	60-125	100-180	11814x2470x4080
SC96L	ZSW3896+C96	60-175	140-245	11700x2470x4080
SC106L	ZSW1149+C106	70-200	150-325	13000x2500x4230
SC116L	ZSW1349+C116	70-200	205-345	15500x2600x4800
SC110L	ZSW1349+C110	70-200	250-395	15000x2510x4600

Advantages

1. Easy Mobility & High Crushing EfficiencyThe integrated mobile crushing station combines a high-performance jaw crusher, feeder and vibrating screen, enabling easy movement and highly efficient on-site operation.

2. Lower Transportation Cost & Fast CommissioningEquipped with a steering traction axle, the plant can be directly driven to the job site and put into operation quickly, greatly reducing material transportation costs and simplifying project startup.

3. Ideal for Coarse Crushing & Wide ApplicationAs an ideal solution for coarse stone crushing, the mobile jaw crusher plant is widely used in road construction, building engineering, construction waste recycling and other projects.

4. Flexible Configuration & Strong Crushing CapacityThe plant supports a wide selection of crusher models, featuring strong crushing capacity and high operating efficiency, making it a typical representative of advanced vehicle-mounted mobile crushing equipment.
