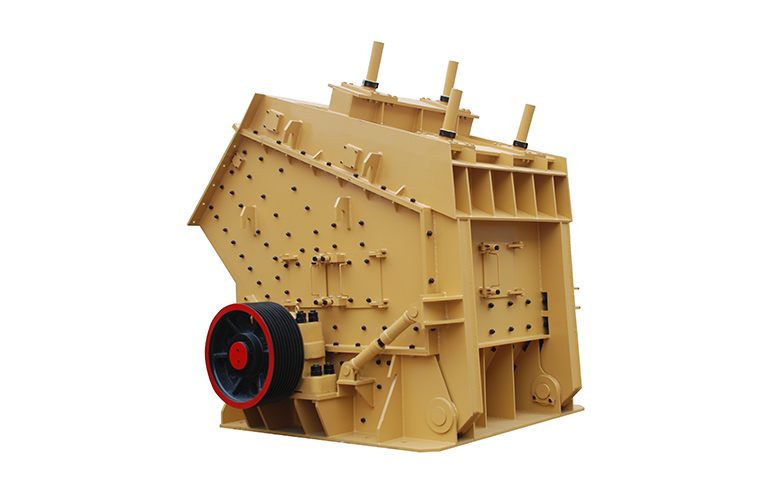

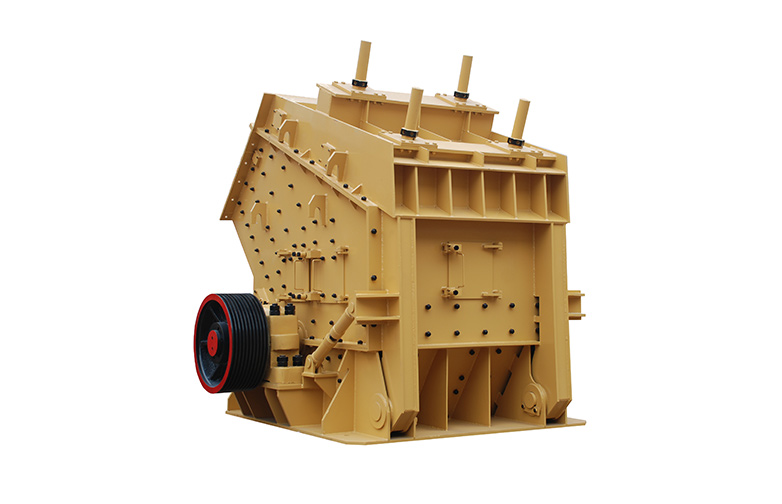

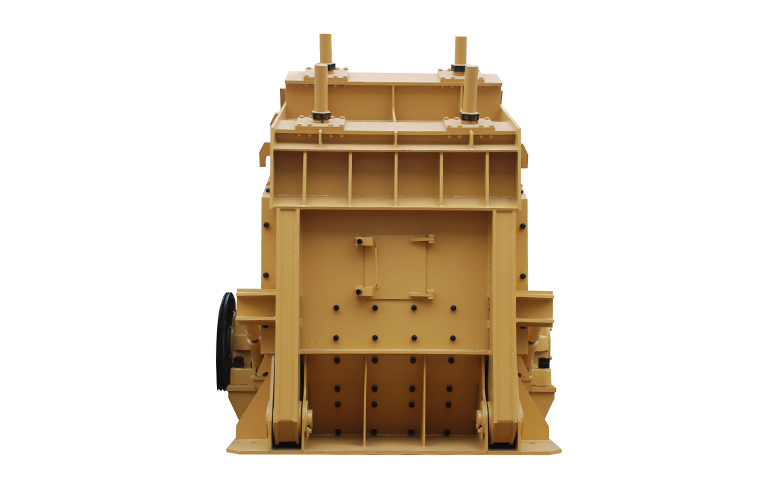

By absorbing the advanced technology from the world, we researched and designed PF series impact crusher. It can be used to deal with materials whose size below 500mm and whose compression strength less than 360Mpa.
When the crusher works, the motor drives the rotor to rotate with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly.
|
Model |
Size of Feeder Opening(mm) |
Max.feeding |
Moter(kw) |
Roter size(mm) |
Capacity(t/h) |
Overall Dimension(mm) |
|
PF-1007 |
400*730 |
300 |
37-55 |
Φ1000*700 |
40-60 |
2400*1560*2660 |
|
PF-1010 |
400*1080 |
350 |
55-75 |
Φ1000*1050 |
60-90 |
2440*2250*2630 |
|
PF-1210 |
400*1080 |
350 |
110-132 |
Φ1250*1050 |
80-130 |
2700*2340*2900 |
|
PF-1214 |
400*1430 |
350 |
132-160 |
Φ1250*1400 |
120-180 |
2700*2690*2890 |
|
PF-1315 |
860*1520 |
450 |
180-260 |
Φ1300*1500 |
180-230 |
3100*3280*2670 |
1. High crushing ratio
2. High crushing efficiency
3. even cubic discharging
4. convenient maintenance

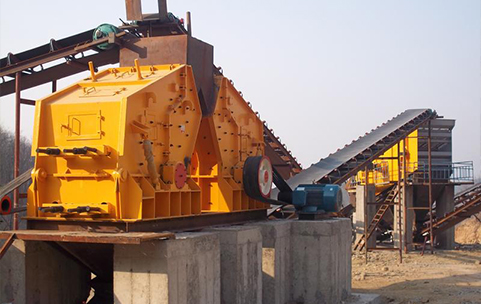

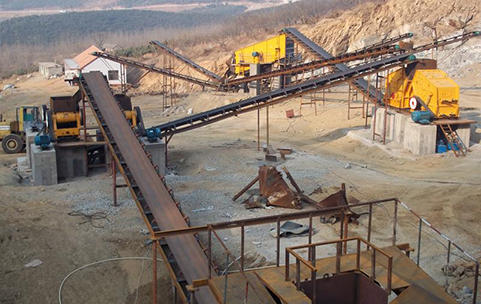

It is widely used in many industries, like chemical, metallurgy, road and bridge construction and sand making and so on. Impact crusher are mostly used as secondary crusher and it well fits for crushing numerous medium and soft mineral &rock materials, such as limestone, feldspar, calcite, talc, barite, clay, tombar thite, kaolin, gypsum, and graphite, et
>
