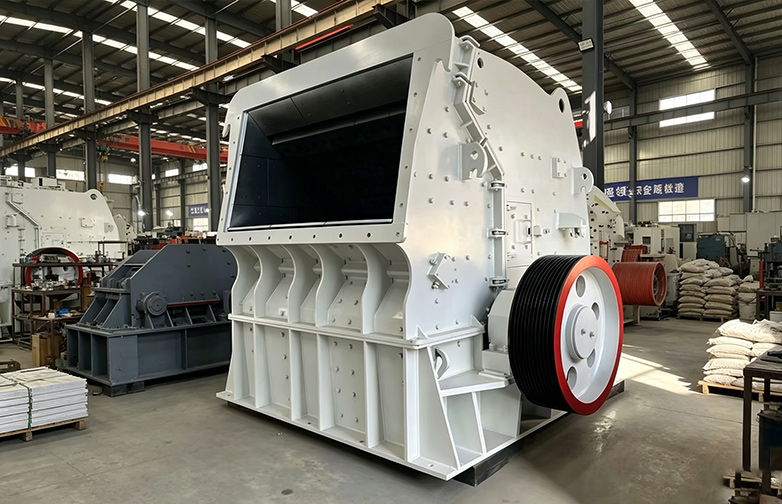

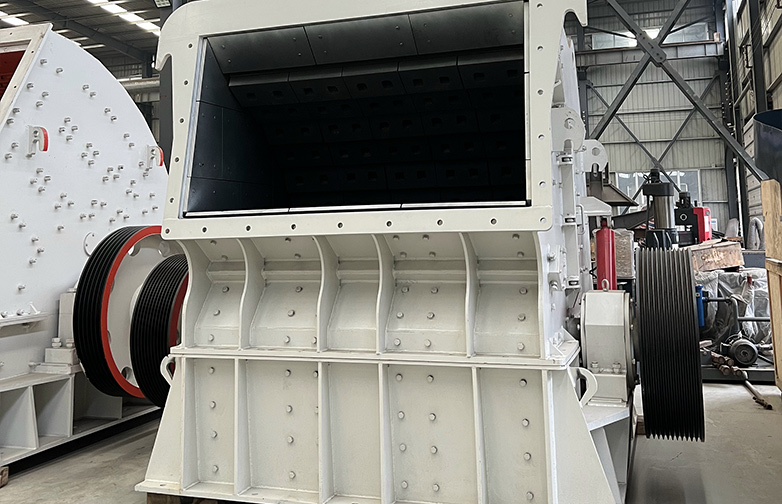

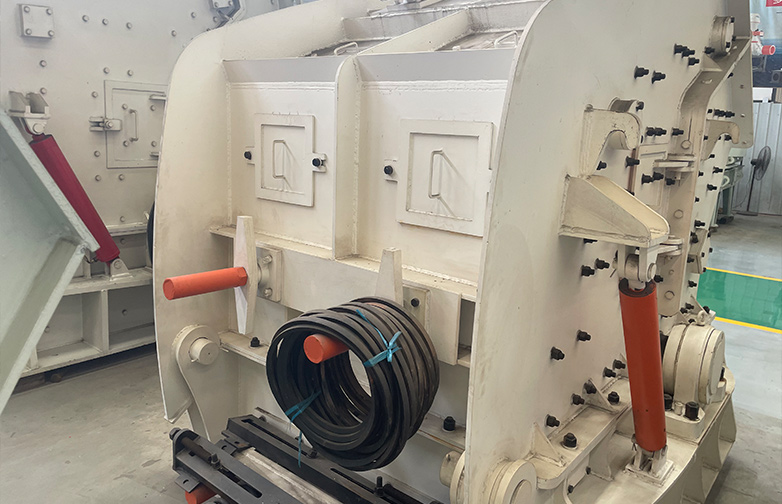

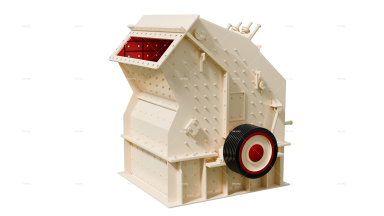

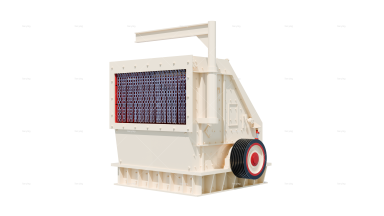

The hydraulic impact crusher is newly developed to meet customers' demands for high profitability, low cost, energy conservation and consumption reduction. It is an ideal equipment for coarse and medium crushing in large-capacity crushing production lines. Integrating the application of new scientific research achievements such as high-precision rotors with large rotational inertia, multi-functional full hydraulic operating systems and involute crushing chambers, it features comprehensive cost-effectiveness and helps customers achieve reliable profitability.

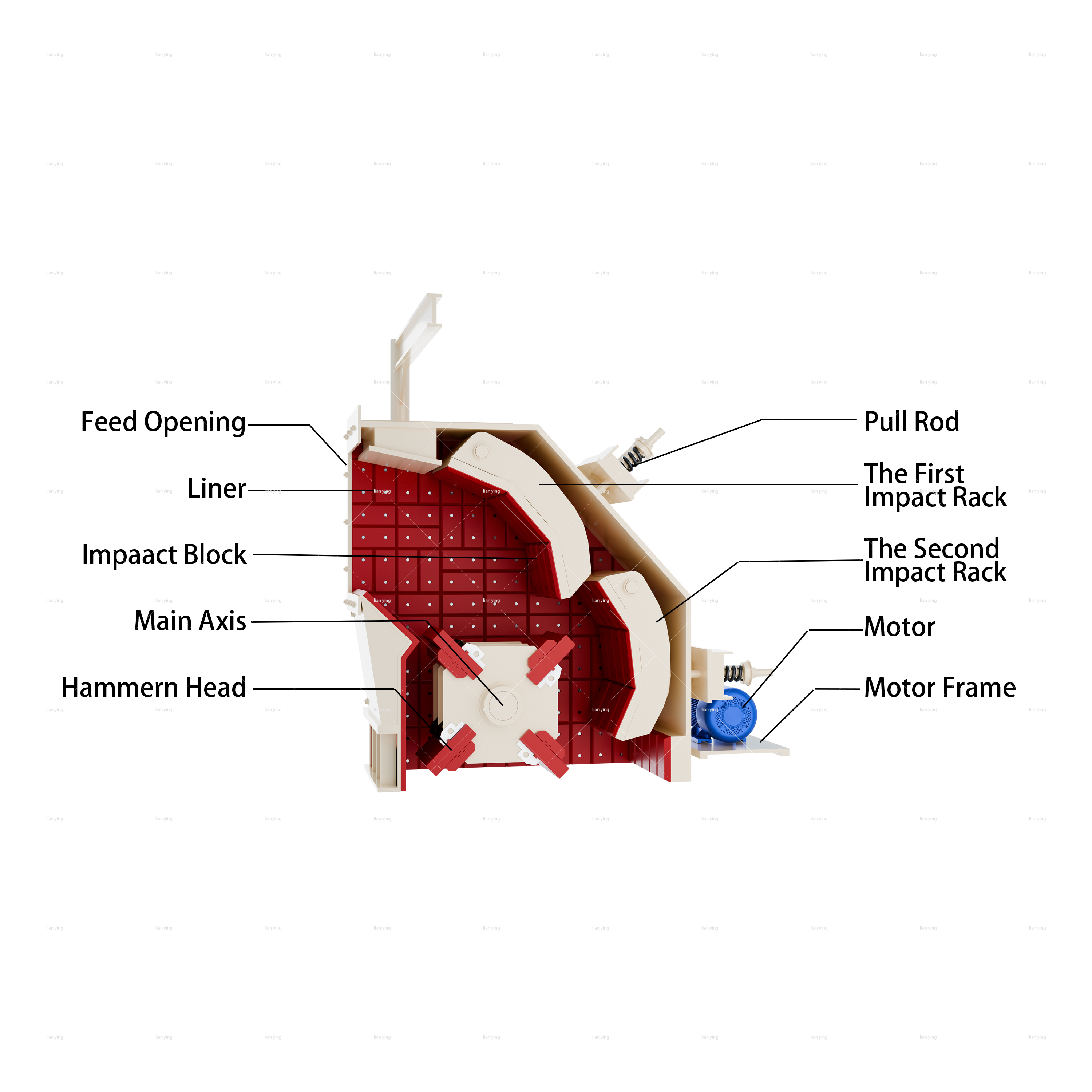

Impact crushers crush materials through high-speed impact. When materials enter the action area of the blow bar from the feed port, they are first crushed by the high-speed impact of the blow bar. The strong impact force throws the materials to the impact plate for further crushing, and the materials rebounded by the impact plate fall onto the blow bar again. This process is repeated continuously until the materials are crushed to a size smaller than the discharge port, and then they are discharged from the discharge port by their own weight.
|
Model |
Adjustable range of outlet(mm) |
Feed size (mm) |
Processing Power(t/h) |
Power (kw) |
|
PS-1010 |
20-100 |
600 |
100-200 |
90-110 |
|
PS-1210 |
20-100 |
900 |
140-285 |
110-160 |
|
PS-1214 |
20-100 |
900 |
200-400 |
160-200 |
|
PS-1317 |
20-200 |
950 |
250-500 |
200-315 |
|
PS-1420 |
20-200 |
1000 |
400-600 |
220*2 |
|
PS-1620 |
20-200 |
1000 |
550-700 |
280*2 |
1. By adjusting the installation position of the reaction frame, the conversion between coarse crushing and medium-fine crushing can be realized flexibly.
2. Equipped with a larger feed inlet, it can be used as a primary crusher when coarse crushing is required, with a maximum feed size of up to 1300mm.
3. When processing construction waste, it can effectively prevent the winding of steel bars.
Widely applied in building materials, ore crushing, transportation, energy, chemical engineering and other industries.
>
