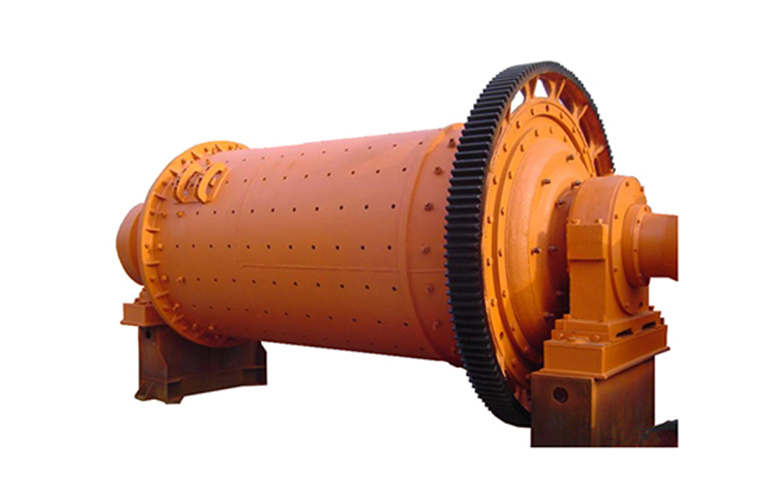

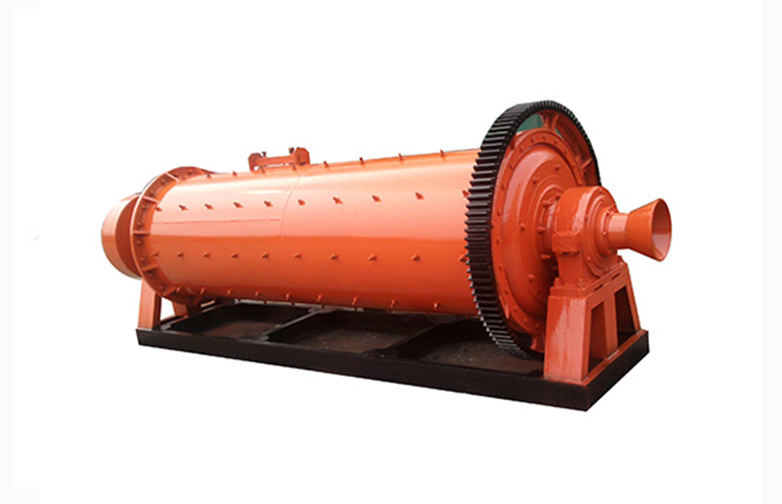

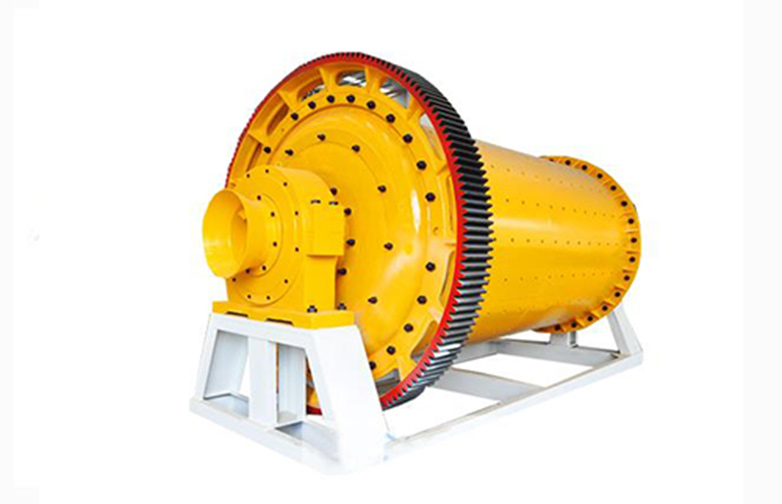

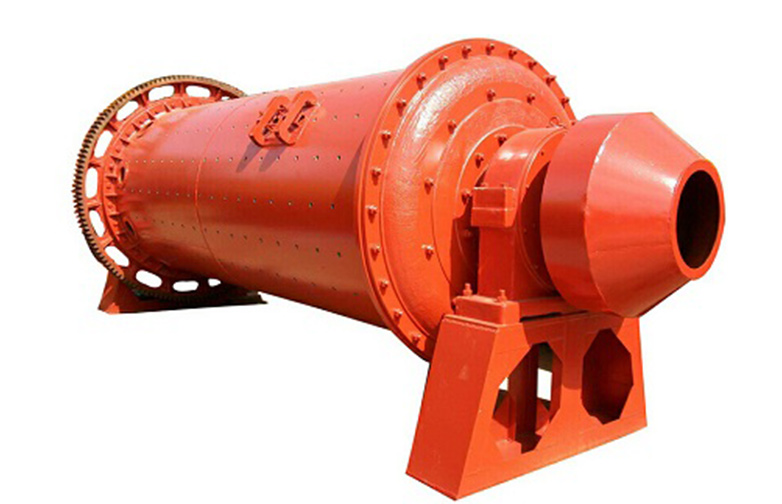

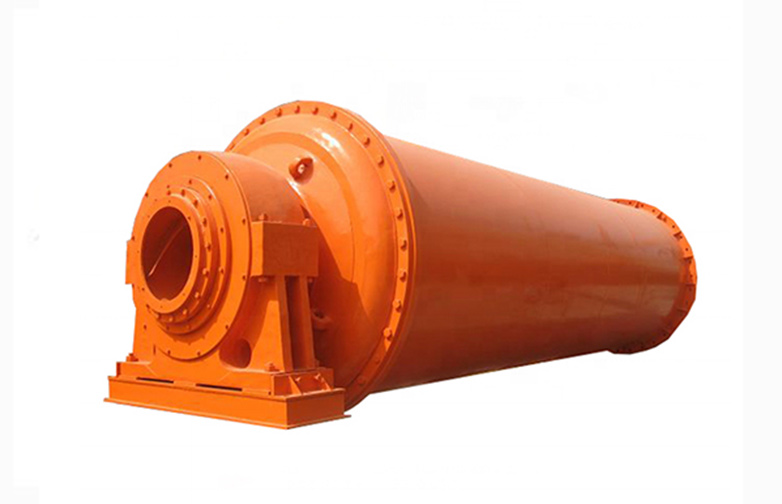

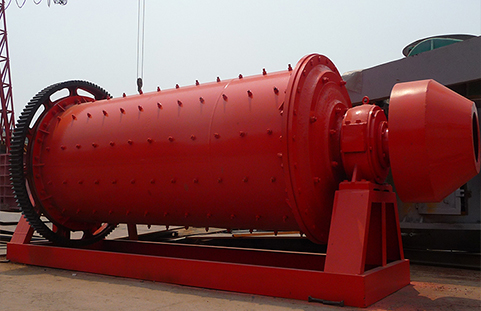

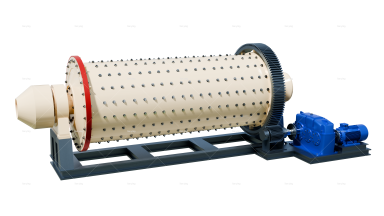

Ball mills are essential grinding equipment for further processing crushed materials.They are widely applied in cement, silicate products, new building materials, refractories, chemical fertilizers, ferrous and non-ferrous mineral processing, glass ceramics, and other industries.The mill supports both dry and wet grinding of various ores and other grindable materials.

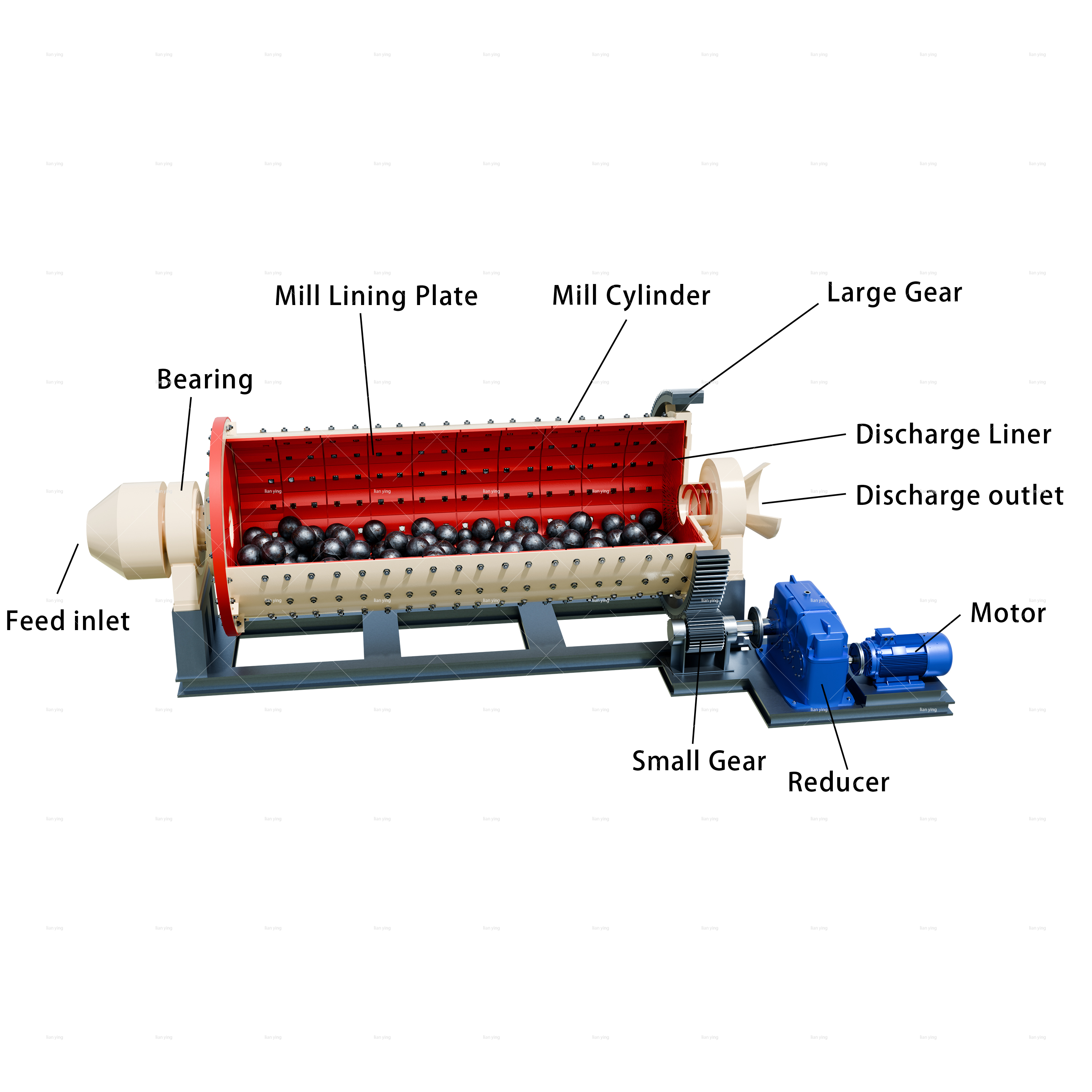

Materials enter the first chamber of the mill through the feed hollow shaft via the feeding device. This chamber is equipped with stepped or corrugated liners and filled with steel balls of various sizes. As the cylinder rotates, centrifugal force lifts the steel balls to a certain height before they drop, exerting heavy impact and grinding on the materials.
After preliminary grinding in the first chamber, materials pass through a single-compartment partition plate into the second chamber, which is fitted with flat liners and steel balls for further fine grinding. The final powder is discharged through the discharge grate, completing the entire grinding process.
|
Specifications and Models |
Cylinder Speed (r/min) |
Ball load (t) |
Feed size (mm) |
Discharging granularity (mm) |
Output (t/h） |
Motor power (kw) |
Weight (t) |
|
Ф900×1800 |
36-38 |
1.5 |
<20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.85 |
|
Ф900×3000 |
36 |
2.7 |
<20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.98 |
|
Ф1200×2400 |
36 |
3 |
<25 |
0.075-0.6 |
1.5-4.8 |
30 |
13.6 |
|
Ф1200×3000 |
36 |
3.5 |
<25 |
0.074-0.4 |
1.6-5 |
37 |
14.3 |
|
Ф1200×4500 |
32.4 |
5 |
<25 |
0.074-0.4 |
1.6-5.8 |
55 |
15.6 |
|
Ф1500×3000 |
29.7 |
7.5 |
<25 |
0.074-0.4 |
2-5 |
75 |
19.5 |
|
Ф1500×4500 |
27 |
11 |
<25 |
0.074-0.4 |
3-6 |
110 |
22 |
|
Ф1500×5700 |
28 |
12 |
<25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
|
Ф1830×3000 |
25.4 |
11 |
<25 |
0.074-0.4 |
4-10 |
130 |
34.5 |
|
Ф1830×4500 |
25.4 |
15 |
<25 |
0.074-0.4 |
4.5-12 |
155 |
38 |
|
Ф1830×6400 |
24.1 |
21 |
<25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
|
Ф1830×7000 |
24.1 |
23 |
<25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
|
Ф2100×3000 |
23.7 |
15 |
<25 |
0.074-0.4 |
6.5-36 |
155 |
45 |
|
Ф2100×4500 |
23.7 |
24 |
<25 |
0.074-0.4 |
8-43 |
245 |
56 |
|
Ф2100×7000 |
23.7 |
26 |
<25 |
0.074-0.4 |
12-48 |
280 |
59.5 |
|
Ф2200×4500 |
21.5 |
27 |
<25 |
0.074-0.4 |
9-45 |
280 |
54.5 |
|
Ф2200×6500 |
21.7 |
35 |
<25 |
0.074-0.4 |
14-26 |
380 |
61 |
|
Ф2200×7000 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-28 |
380 |
62.5 |
|
Ф2200×7500 |
21.7 |
35 |
<25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
|
Ф2400×3000 |
21 |
23 |
<25 |
0.074-0.4 |
7-50 |
245 |
58 |
|
Ф2400×4500 |
21 |
30 |
<25 |
0.074-0.4 |
8.5-60 |
320 |
72 |
|
Ф2700×4000 |
20.7 |
40 |
<25 |
0.074-0.4 |
22-80 |
380 |
95 |
|
Ф2700×4500 |
20.7 |
48 |
<25 |
0.074-0.4 |
26-90 |
480 |
102 |
|
Ф3200×4500 |
18 |
65 |
<25 |
0.074-0.4 |
According to process conditions |
630 |
149 |
|
Ф3600×4500 |
17 |
90 |
<25 |
0.074-0.4 |
According to process conditions |
850 |
169 |
|
Ф3600×6000 |
17 |
110 |
<25 |
0.074-0.4 |
According to process conditions |
1250 |
198 |
|
Ф3600×8500 |
18 |
131 |
<25 |
0.074-0.4 |
45.8-256 |
1800 |
260 |
|
Ф4000×5000 |
16.9 |
121 |
<25 |
0.074-0.4 |
45-208 |
1500 |
230 |
|
Ф4000×6000 |
16.9 |
146 |
<25 |
0.074-0.4 |
65-248 |
1600 |
242 |
|
Ф4000×6700 |
16.9 |
149 |
<25 |
0.074-0.4 |
75-252 |
1800 |
249 |
|
Ф4500×6400 |
15.6 |
172 |
<25 |
0.074-0.4 |
84-306 |
2000 |
280 |
|
Ф5030×6400 |
14.4 |
216 |
<25 |
0.074-0.4 |
98-386 |
2500 |
320 |
|
Ф5030×8300 |
14.4 |
266 |
<25 |
0.074-0.4 |
118-500 |
3300 |
403 |
|
Ф5500×8500 |
13.8 |
338 |
<25 |
0.074-0.4 |
148-615 |
4500 |
525 |
1. Wide Application Range Capable of processing over 100 types of mineral raw materials, with outstanding grinding performance in both dry and wet operation modes.
2. High Grinding Ratio Compared with other grinding equipment, it can achieve finer particle sizes and more thorough material grinding.
3. Strong Production Capacity By adjusting the discharge opening, it can produce materials of different fineness levels to meet diverse production requirements.
4. Easy Maintenance Constructed with wear-resistant materials for long service life, coupled with a simple maintenance process, effectively saving time and cost for enterprises.

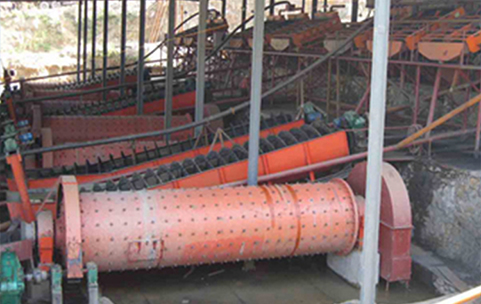

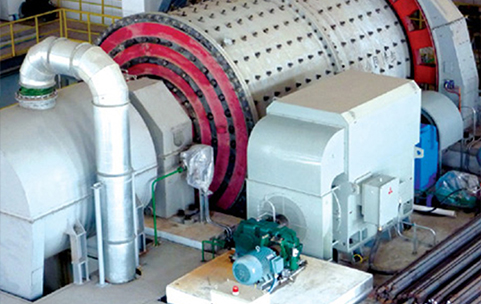

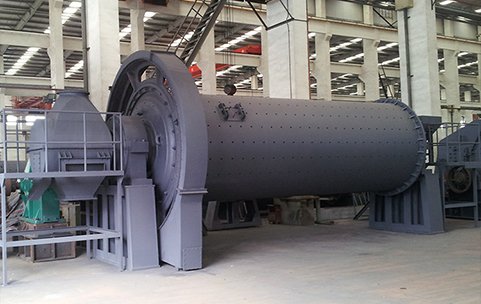

mining, construction, ceramic and glass industry, chemical industry, refractory industry, etc
>
