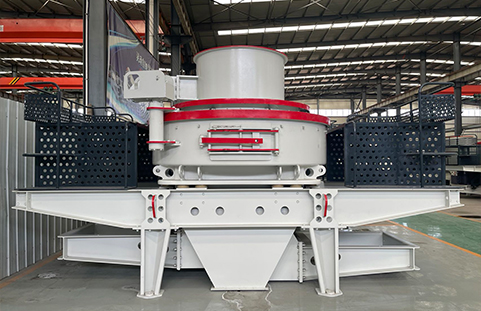

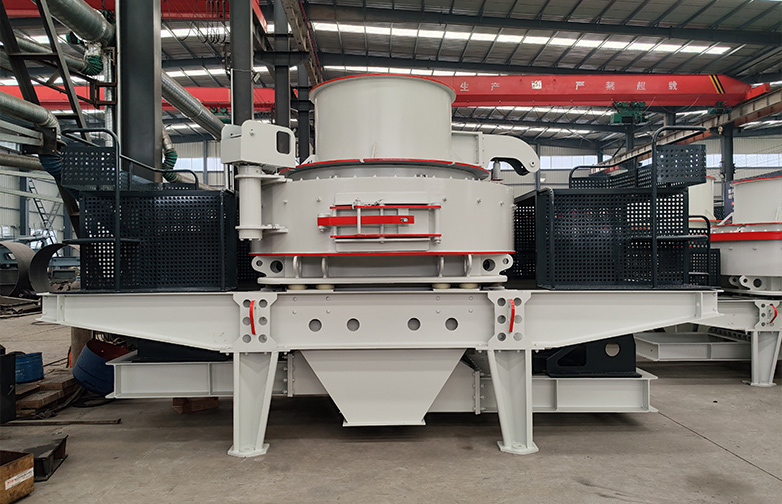

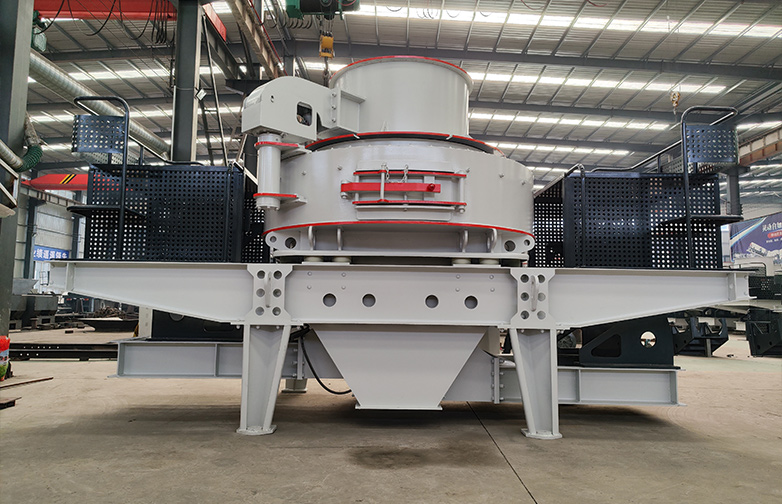

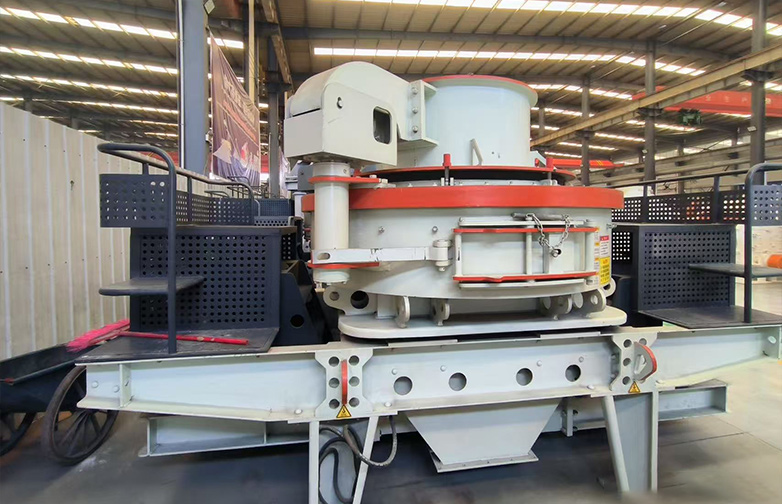

6X sand making machine

VSI6X vertical shaft crusher is a high-efficiency sand-making and crushing equipment with independent core intellectual property rights developed by our company based on years of practical experience. This equipment can be widely used in metal and non-metallic ores, building materials, artificial sand, and various metallurgical slags. It can be used for crushing and shaping special flammable materials such as coal and calcium carbide.

Feeding size: ≤60mm

Finished size: ≤5mm

Motor Power（KW）：150-440kw

Send Message

Product Introduction

Working Principle

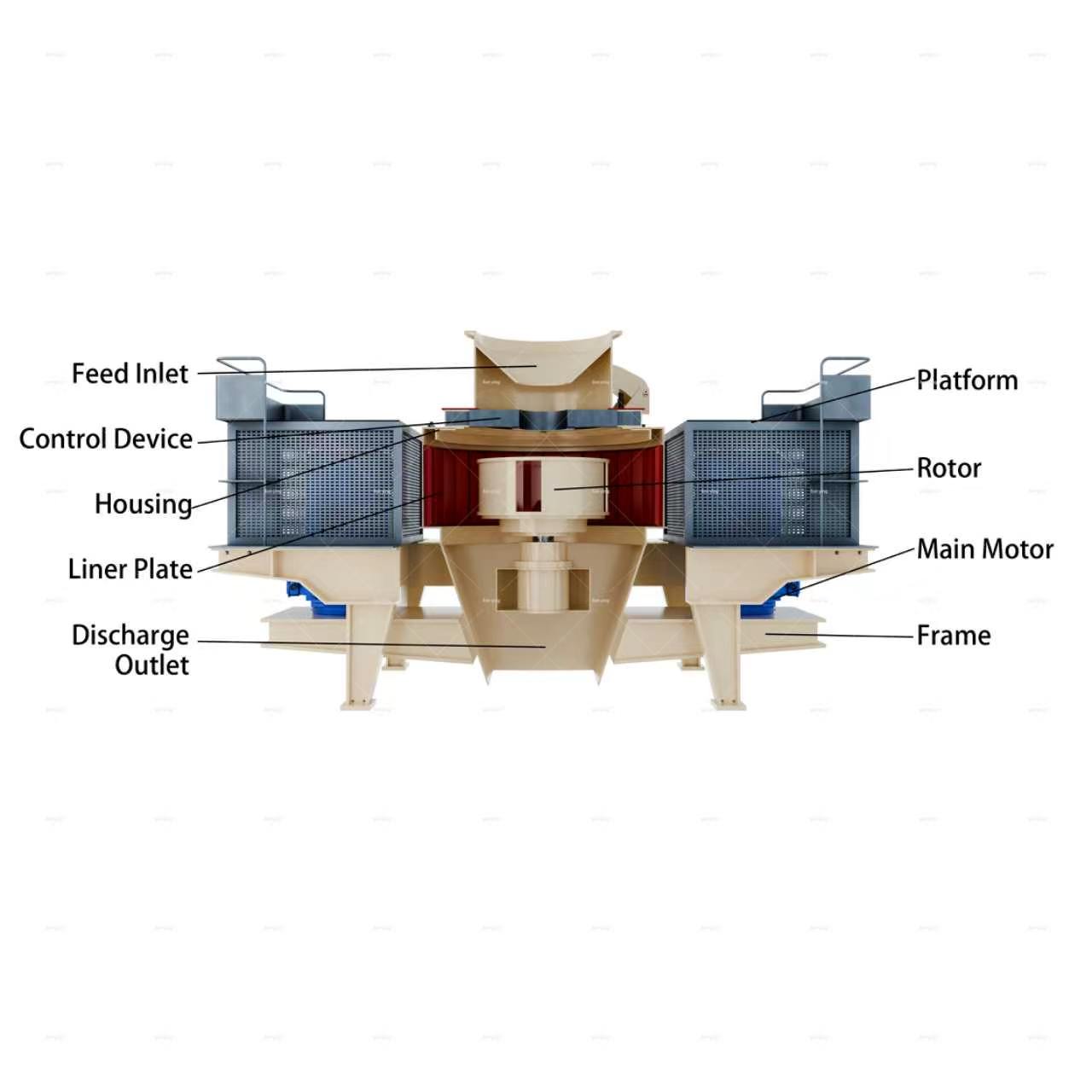

Material enters through the feed inlet and drops into the high-speed rotating impeller. Accelerated by centrifugal force, it is thrown out and collides at high velocity with either other material ("rock-on-rock") or metal impact plates ("rock-on-metal") to achieve primary crushing. Subsequently, a self-circulating flow forms within the vortex crushing chamber, where the material undergoes repeated impact and attrition to complete fine crushing and shaping. Finally, qualified finished products are discharged from the bottom. This process relies on material-to-material collision to efficiently achieve crushing and particle shape optimization.

Parameters

Model		6X1263	6X1150	6X1040	6X9026	6X8015
Capacity(t/h)	Crushing	454-486	344-368	264-283	167-179	109-117
Capacity(t/h)	Shaping	545-583	413-442	317-342	200-215	131-140
Best Feed Size(mm)	Crushing	≤50	≤45	≤40	≤35	≤30
Best Feed Size(mm)	Shaping	≤60	≤55	≤50	≤45	≤40
Spindle Speed(r/min)		900-1200	1000-1300	1100-1400	1200-1500	1300-1700
Power KW(HP)		2×315(400)	2×250(350)	400	264	150
Dimension(L×WxH)(mm)		5700×2980×4190	5500×2750×3950	4880×2560×3725	4640×2380×3500	4100×2380×3500
Hydraulic Lubrication Station	Power KW(HP)	0.75
	Safety	Dual oil pumps provide complementary oil, automatic shutdown without oil flow, air-cooled cooling, and self-starting heating in winter.
	Flow Capacity	4-16L
	Oil Tank Heater Power	4KW
Note: Production capacity is measured based on medium-hardness limestone. At the same time, it is also affected by factors such as particle size, moisture content, and material properties.

Advantages

The impeller structure adopts a new design of four throwing ports to increase the material throughput. Compared with the three-port impeller, the crushing efficiency of the same material is increased by about 20%;Adopt the "stone on stone" working mode to reduce wear-resistant product types and customer production costs.

Application Fields

Application areas include Sand and stone field, concrete sand making, dry powder mortar, machine sand, power plant desulfurization, quartz sand, etc. Applicable materials include Pebbles, river pebbles, basalt, granite, quartzite, diabase, cement clinker and other hard and brittle materials. Catering to materials with high abrasiveness or high purity requirements.
