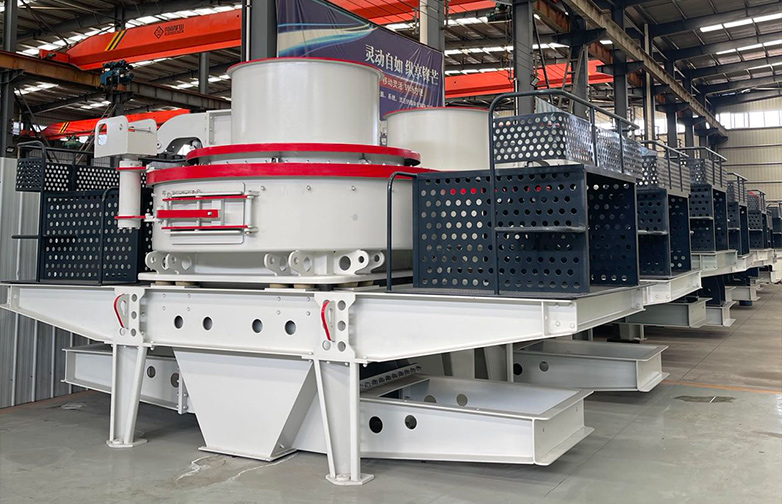

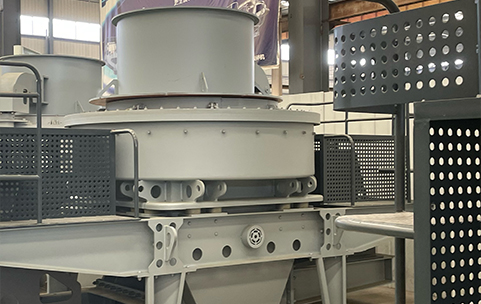

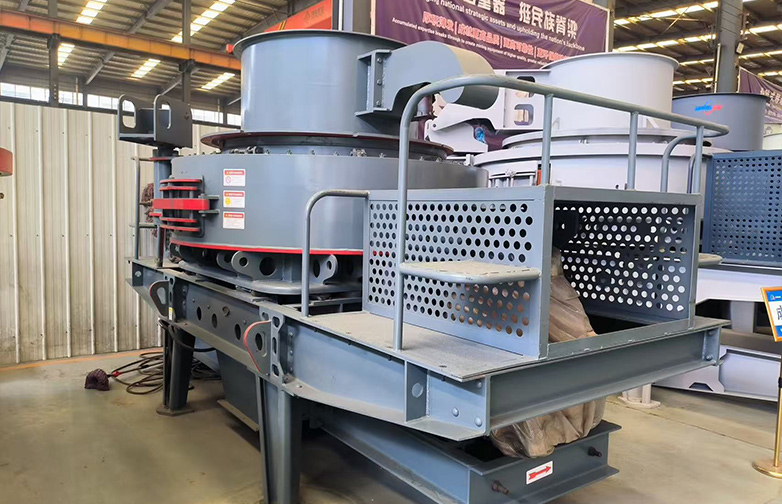

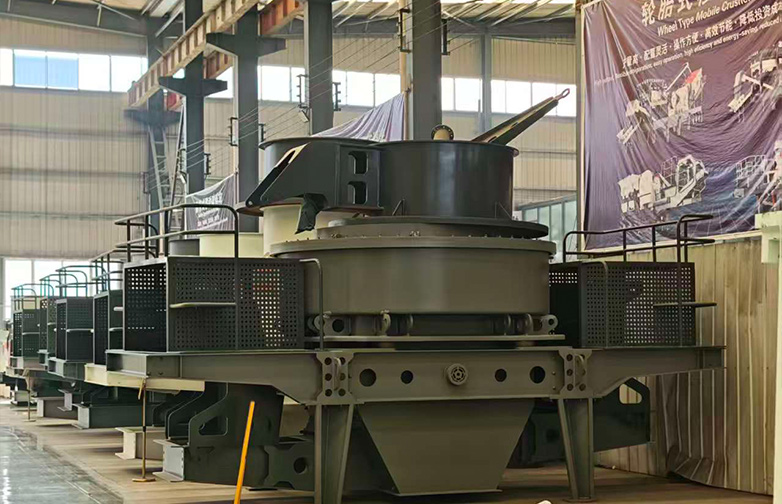

5X sand making machine

It is a model of the perfect combination of professional crushing technology and mechanical manufacturing . It can not only provide the highest quality sand and gravel aggregate for highways, high-speed railways, high-rise buildings, municipal projects, hydropower dam construction, port terminals, concrete mixing stations, etc., but has also become the undisputed core of the machine-made sand industry and stone shaping fields. 5X Sand Making Machine is a new high-efficiency crushing machine recognized worldwide.

Feeding size: ≤50mm

Finished size: ≤5mm

Motor Power（KW）：150-440kw

Send Message

Product Introduction

Working Principle

Material enters through the feed inlet and drops into the high-speed rotating impeller. Accelerated by centrifugal force, it is thrown out and collides at high velocity with either other material ("rock-on-rock") or metal impact plates ("rock-on-metal") to achieve primary crushing. Subsequently, a self-circulating flow forms within the vortex crushing chamber, where the material undergoes repeated impact and attrition to complete fine crushing and shaping. Finally, qualified finished products are discharged from the bottom.

Parameters

Model		5X7615	5X8522	5X9532	5X1145
Capacity(t/h)	Feed at Center & Sides	150~280	240~380	350~540	500~640
Capacity(t/h)	Center Feeding	70~140	120~200	180~280	250~640
Best Feed Size(mm)	Soft Material	35	40	45	50
Best Feed Size(mm)	Hard Material	30	35	40	45
Rotating Speed(t/min)		1710~1900	1530~1700	4280-1550	1200~1390
Motor Power(Kw)		2×75	2×110	2×160	2x220
Dimension(L×WxH)(mm)		4100×2330×2300	4100×2500×2700	4560×2600×2900	5000×2790×3320
Power Source		380v,50Hz
Thin Oil Lubrication Station	Oil Pump Motor Power	0.75kw
	Security Protection	Dual oil pump complementary oil supply; Automatic shutdown without oil flow; Air cooling; Winter motor heating starts
	Oil Tank Heating Power	2KW
	LxWxH(mm)	820×520×1270
Note: Production capacity is measured based on medium-hardness limestone. At the same time, it is also affected by factors such as particle size, moisture content, and material properties.

Advantages

1. Advanced Rotor Optimization: Material throughput increased by approximately 30%.

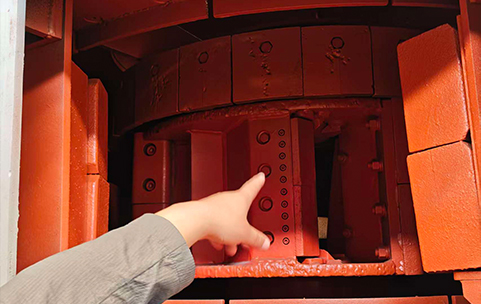

2. Diamond-Shaped Impact Blocks: Designed to prevent damage to the anvil plate caused by material impact and wear.

3. Dual-Purpose Feed Distributor: Simple operation allowing easy switching between two feeding modes.

4. Specialized Sealing Structure：Unique seal at the bottom of the main shaft ensures zero oil leakage, even without an oil seal.

Application Fields

Application areas include sand and stone field, concrete sand making, dry powder mortar, machine sand, power plant desulfurization, quartz sand, etc. Applicable materials include Pebbles, river pebbles, basalt, granite, quartzite, diabase, cement clinker and other hard and brittle materials. Catering to materials with high abrasiveness or high purity requirements.
